Red Brass vs Yellow Brass: 2026 Engineering & Selection Guide

Selecting the right copper alloy for precision hardware, fluid fittings, or decorative architectural trim can make or break your product's operational lifespan and manufacturing budget. When evaluating red brass vs yellow brass, engineers and buyers encounter two non-ferrous metals that look distinct, perform differently under mechanical load, and behave completely uniquely in corrosive environments.

While both alloys are primarily combinations of copper and zinc, their precise element ratios alter everything from tensile strength and CNC machinability to dezincification resistance and raw material cost.

Whether you are sourcing material for potable water valves, electrical enclosures, marine hardware, or luxury interior fittings, this comprehensive guide compares red brass vs yellow brass across critical engineering dimensions to help you pick the exact material for your next production run.

Looking for a trusted metal manufacturing partner? If you already have your CAD models ready and need tight-tolerance components fabricated in red brass, free-cutting yellow brass, or custom bronzes, Aether offers high-speed 5-axis CNC milling, Swiss turning, and certified surface finishing with rapid lead times.

At-a-Glance Comparison: Red Brass vs. Yellow Brass

For quick engineering evaluation, the table below compares standard red brass (UNS C23000) against free-cutting yellow brass (UNS C36000):

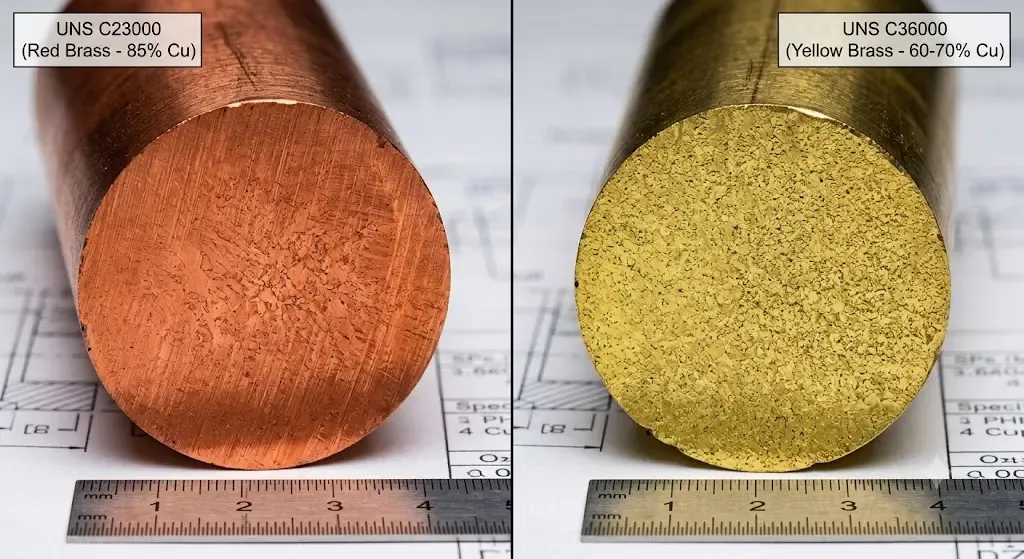

01. Chemical Composition & Alloy Classifications

The foundational difference between red brass and yellow brass lies in their chemical makeup—specifically the percentage of copper relative to zinc and secondary alloying elements.

Red Brass (High Copper Alloys)

• Red brass (often designated as UNS C23000 for wrought stock or UNS C83600 for cast stock) contains approximately 85% copper, 15% zinc, and small traces of lead or tin. Because copper dominates the alloy matrix, red brass retains physical characteristics close to pure copper while gaining structural strength from zinc.

Yellow Brass (High Zinc Alloys)

• Yellow brass (such as UNS C26000 cartridge brass or UNS C36000 free-cutting brass) contains 60% to 70% copper and 30% to 40% zinc. Replacing a larger portion of expensive copper with zinc lowers the alloy's density, changes its color profile, and significantly alters its mechanical behavior during machining and cold forming.

Dimension Conclusion: Red brass prioritizes high copper purity for extreme corrosion immunity, while yellow brass leverages higher zinc content to lower raw material expenses and enhance machinability.

02. Appearance, Color & Surface Finishing

Visual aesthetics are often the first selection criteria in architectural and decorative hardware projects.

Red Brass Aesthetics

• Features a rich, dark golden-red hue that closely mirrors pure copper or bronze. It provides a warm, understated visual tone that oxidizes gracefully into a deep antique patina over time. It is widely preferred for traditional fixtures, outdoor ornamental castings, and high-end nautical accents.

Yellow Brass Aesthetics

• Boasts a bright, reflective, yellow-gold appearance resembling precious gold. It accepts mechanical mirror polishing, electroplating (bright chrome or nickel), and clear lacquer sealing exceptionally well, making it the industry standard for interior trim, hotel hardware, musical instruments, and visible fasteners.

Dimension Conclusion: Choose yellow brass when a reflective, modern gold shine is required; choose red brass when you need a warmer, copper-like aesthetic that resists harsh weathering.

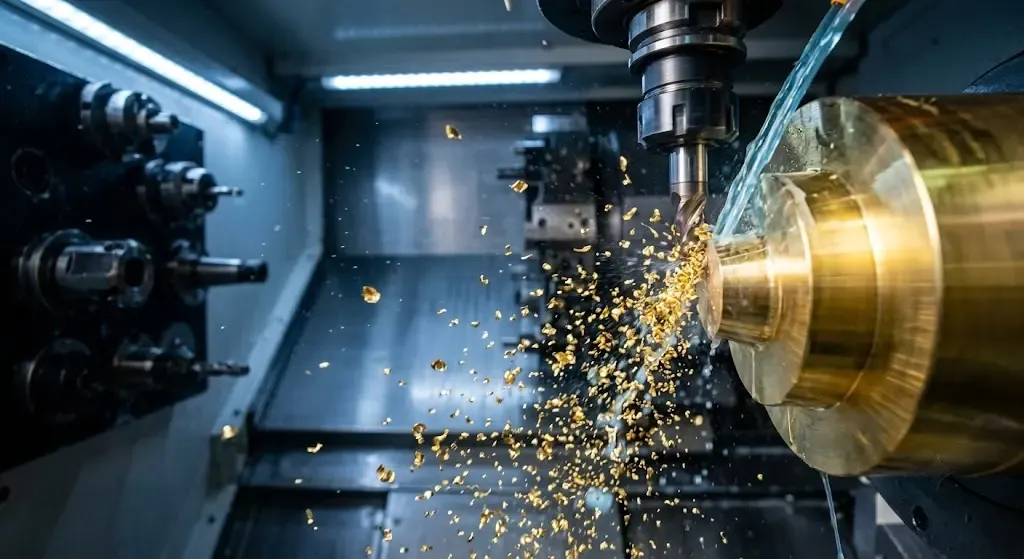

03. Mechanical Properties & CNC Machinability

In precision manufacturing, machinability dictates machine cycle times, tool wear, chip management, and overall part cost.

Machinability Dynamics: C36000 vs. C23000

• Yellow Brass (C36000) Performance: UNS C36000 free-cutting yellow brass serves as the 100% baseline benchmark for metal machinability worldwide. The addition of roughly 2.5% to 3.7% lead creates microscopic chip-breaker zones within the matrix. Tools cut effortlessly at high spindle speeds (15,000+ RPM), producing small, brittle chips with zero tool chatter and outstanding surface finishes straight off the mill or lathe.
• Red Brass (C23000) Performance: Red brass is tougher and more ductile during machining, carrying a machinability rating of roughly 30% to 40%. Because it lacks high lead content, it tends to produce longer, stringier chips that require specialized chip-breaker inserts, lower feed rates, and continuous flood coolant to prevent heat buildup on the cutting edge.

Dimension Conclusion: Yellow brass (especially C36000) is the clear winner for high-speed CNC milling and automated Swiss turning, drastically lowering machine shop labor costs compared to red brass.

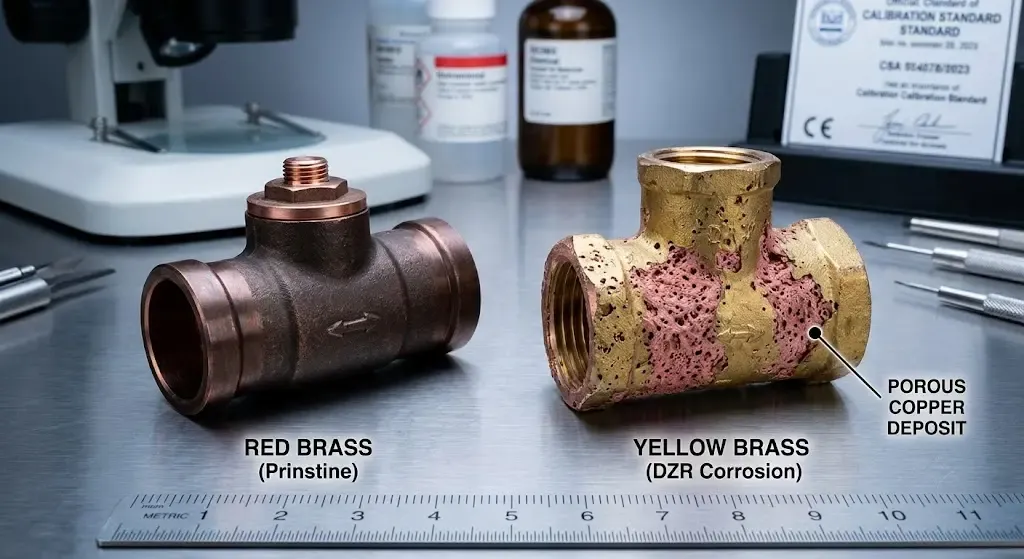

04. Corrosion Resistance & Dezincification (DZR)

When components operate in water systems, chemical lines, or marine environments, corrosion resistance becomes the deciding factor.

Dezincification Mechanism in Yellow Brass: Acidic Water Exposure → Zinc Leaches Out of Alloy → Porous Copper Skeleton Remains → Structural Failure

The Dezincification (DZR) Risk

Dezincification is a selective leaching process that occurs in copper-zinc alloys containing more than 15% zinc when exposed to soft, acidic, or stagnant water.

• Yellow Brass Vulnerability: Because yellow brass contains 30% to 40% zinc, it is highly susceptible to dezincification over time. Water attacks the zinc within the alloy, leaving behind a weak, porous mass of brittle copper that eventually cracks under normal line pressure.
• Red Brass Immunity: Red brass contains only 15% zinc—the critical threshold below which dezincification virtually never occurs. It exhibits exceptional resistance to biofouling, mineral pitting, and underground soil corrosion.

Dimension Conclusion: Red brass is mandatory for potable water plumbing, underground valves, pump impellers, and marine fittings where long-term fluid exposure would cause yellow brass to fail structurally.

05. Material Cost & Lifecycle Value

Evaluating material selection requires looking beyond upfront raw material prices to calculate total lifecycle value.

• Upfront Raw Material Cost: Global copper commodity prices drive raw metal costs. Because red brass contains ~85% copper, its raw material cost per pound is substantially higher than yellow brass, which replaces a large portion of copper with cheaper zinc.
• Machining & Production Overhead: Yellow brass machines two to three times faster than red brass with minimal tool wear, reducing total CNC machine hour costs for complex geometries.
• Lifecycle Value: In corrosive fluid applications, yellow brass fittings often require premature replacement due to dezincification. Red brass valves routinely last decades without maintenance, delivering a far superior return on investment (ROI) despite higher initial costs.

Dimension Conclusion: Yellow brass offers the lowest upfront cost for dry indoor components, while red brass delivers superior lifecycle value for heavy-duty industrial fluid infrastructure.

Technical Note: Red Brass vs. Bronze vs. Architectural Bronze

It is easy to confuse red brass with bronze, but their chemical definitions are distinct:

• Red Brass: A copper-zinc alloy (~85% Cu, 15% Zn).
• True Bronze: A copper-tin alloy (typically copper combined with tin, aluminum, or silicon—containing zero zinc).
• Architectural Bronze: Despite its commercial name, architectural bronze is actually a high-zinc yellow brass alloy (UNS C38500) modified with lead for hot extrusion and architectural trim!

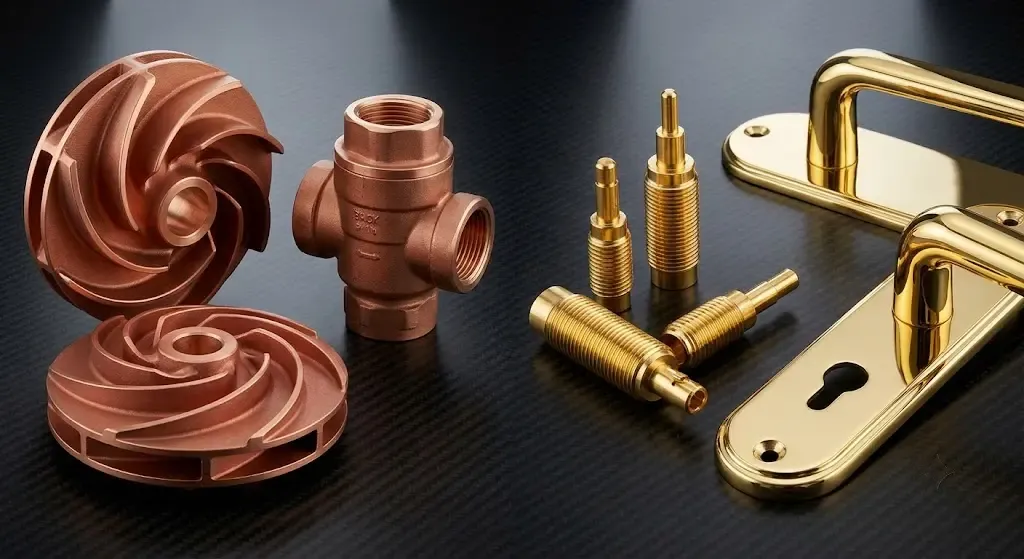

Decision Blueprint: How to Choose for Your Next Project

Use this quick engineering selection framework to finalize your material specification:

Choose Red Brass if your project requires:

• Potable water plumbing valves, underground service fittings, or backflow preventers.
• Components immune to dezincification (DZR) and marine biofouling.
• Heavy-duty industrial pump castings, impellers, and fluid-handling housings.
• Decorative architectural elements requiring a warm, reddish, copper-like antique finish.

Choose Yellow Brass if your project requires:

• High-volume CNC machined parts where fast cycle times and crisp surface finishes drive profitability.
• Interior architectural trim, door hardware, electrical terminals, and decorative fixtures requiring a bright gold shine.
• Complex stamped or cold-formed components like cartridge casings and drawn shells.
• Dry indoor mechanical fasteners, gears, and general hardware.
