Tungsten vs Titanium: Engineering & Material Selection Guide

When specifying high-performance metals for aerospace structures, medical devices, wear-resistant tooling, or consumer hardware, the debate between tungsten vs titanium frequently arises. Both metals are celebrated for extreme durability and high performance, leading many to assume they are interchangeable. In reality, their physical, mechanical, and thermal profiles sit on completely opposite ends of the material spectrum.

Choosing the wrong metal can result in premature structural failure, excessive part weight, unmanageable tool wear, or severe manufacturing cost overruns.

Whether you need a lightweight structural alloy that withstands cyclic fatigue or an ultra-dense refractory metal capable of surviving extreme heat, this guide breaks down tungsten vs titanium across six standardized engineering dimensions to help you select the exact material for your next application.

Need precision parts machined in titanium or tungsten? If you already have CAD drawings ready and need tight-tolerance components fabricated in refractory or reactive metals, Aether provides multi-axis CNC milling, high-speed Swiss turning, and specialized Wire EDM infrastructure tailored for challenging alloys.

Overview Comparison Matrix: Tungsten vs. Titanium

For a quick engineering reference, the table below compares pure tungsten (and its carbide form) against standard commercial titanium (Grade 2) and structural titanium (Grade 5 / Ti-6Al-4V):

01. Density, Mass & Weight-to-Volume Ratio

The most immediate physical difference between tungsten and titanium is mass. Their weight profiles serve opposite engineering objectives.

• Tungsten Behavior: Tungsten is one of the densest elements on Earth (19.30 g/cm³), matching the density of gold and surpassing lead by more than 70%. When maximum mass is required within a compact physical envelope, tungsten is unmatched.
• Titanium Behavior: Titanium is celebrated for its low density (4.43 – 4.51 g/cm³), weighing roughly half as much as steel and less than a quarter of tungsten. It delivers structural mass efficiency, minimizing inertial load in dynamic assemblies.

Dimension Conclusion: Titanium wins for weight-sensitive applications like aerospace airframes, automotive racing, and wearable hardware. Tungsten wins when maximum mass density is required, such as in F1 ballast weights, gyroscopic rotors, flywheels, and compact radiation shielding.

02. Hardness, Scratch Resistance & Wear Behavior

Surface hardness dictates how a material responds to abrasive wear, contact friction, and daily handling.

• Tungsten Behavior: Pure tungsten is extremely hard, but when combined with carbon to form Tungsten Carbide (WC), it achieves a hardness rating of 8.5 to 9 on the Mohs scale (60+ HRC). It is virtually scratch-proof under normal industrial or consumer conditions, making it an exceptional material for metalworking cutting inserts, abrasive nozzles, and ultra-durable rings.
• Titanium Behavior: Titanium registers at approximately 6 on the Mohs scale (36–40 HRC for Grade 5). While significantly harder than aluminum or gold, titanium can still take scratch marks when rubbed against hardened steel, ceramics, or concrete. However, titanium's lower hardness prevents it from being brittle.

Dimension Conclusion: Tungsten carbide dominates for abrasive wear resistance and scratch-proof surfaces. Titanium is preferred when scratch resistance must be balanced with impact resistance, ensuring the component will not chip or fracture under sudden shock loads.

03. Tensile Strength, Flexibility & Fracture Toughness

Evaluating structural performance requires distinguishing raw tensile strength from fracture toughness and ductility.

• Tensile Strength vs. Elasticity: Structural titanium alloys like Ti-6Al-4V (Grade 5) deliver an ultimate tensile strength of 900 to 1,200 MPa paired with a low elastic modulus (~110 GPa). This flexibility allows titanium to flex under dynamic fatigue loads and return to its original shape without cracking.
• Brittleness and Impact Behavior: Pure tungsten boasts impressive tensile strength (up to 1,000+ MPa depending on processing) and extreme stiffness (~400 GPa), but it suffers from low fracture toughness at room temperature. Under heavy impact, sharp shock loads, or dropping onto hard surfaces, tungsten components can shatter or crack along grain boundaries.

Dimension Conclusion: Titanium is the superior structural metal for load-bearing brackets, springs, flight structures, and high-impact hardware. Tungsten should not be used as a primary structural element subject to heavy bending, shear impact, or shock forces.

04. Heat Resistance & Thermal Behavior

Thermal stability dictates how a metal performs under high temperatures, rocket exhausts, or high-voltage arcs.

• Melting Point Profile: Tungsten holds the highest melting point of any pure metal at an astonishing 3,422°C (6,192°F). It retains structural stiffness, creep resistance, and tensile strength at temperatures well above 2,000°C—temperatures where titanium and steel completely liquefy.
• Thermal Expansion & Conductivity: Tungsten exhibits a very low coefficient of thermal expansion combined with high thermal conductivity (~173 W/m·K), ensuring high dimensional stability under extreme heat. Titanium has a melting point of 1,668°C (3,034°F) and low thermal conductivity (~21.9 W/m·K), which causes heat to concentrate at the cutting edge during machining.

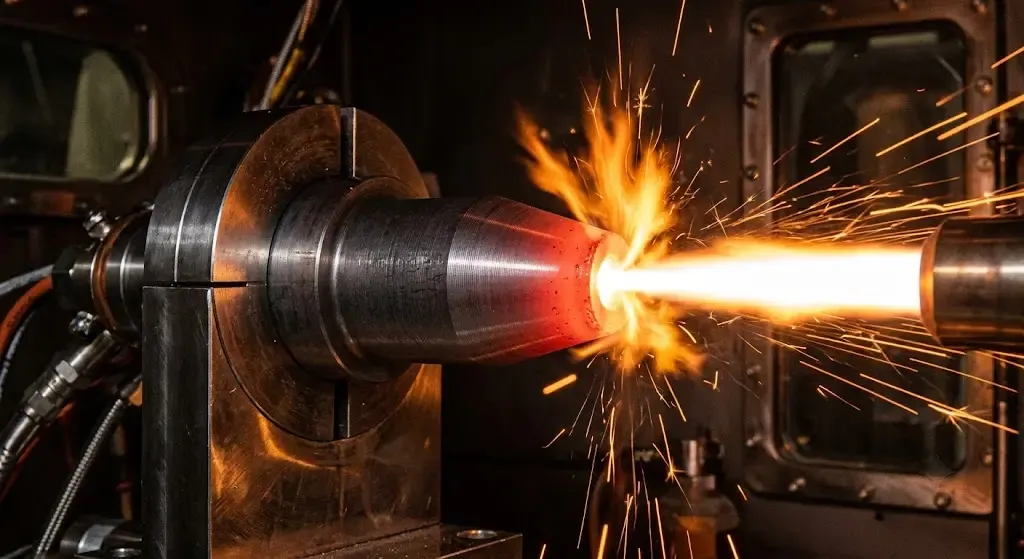

Dimension Conclusion: Tungsten reigns supreme in extreme high-temperature environments, such as rocket engine nozzles, TIG welding electrodes, furnace heating elements, and X-ray target anodes. Titanium is limited to moderate-to-high temperatures (up to ~400°C–500°C) before losing structural strength or oxidizing rapidly.

05. Corrosion Resistance & Biocompatibility

Chemical inertness determines how a metal behaves when exposed to saltwater, harsh chemicals, or living human tissue.

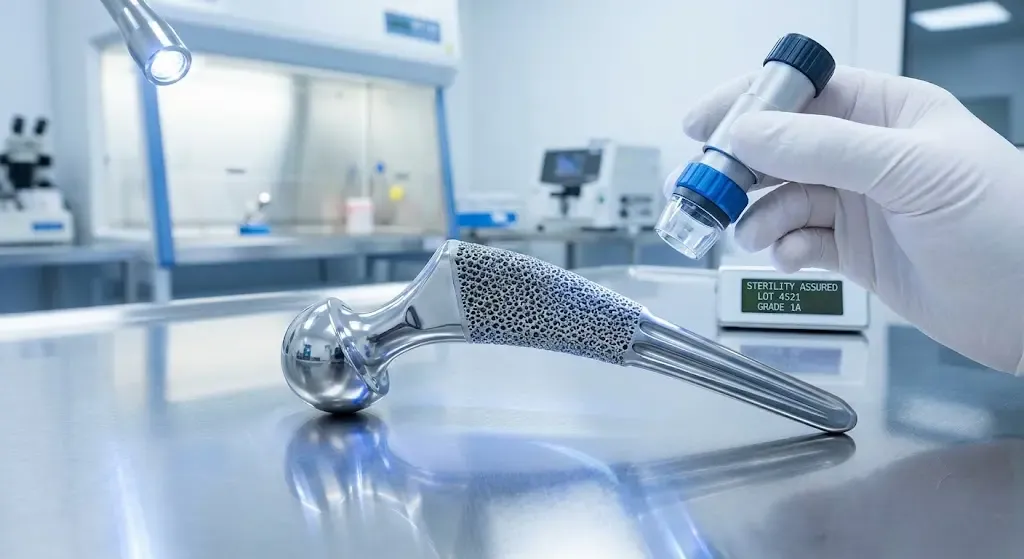

• Titanium Corrosion & Medical Safety: Titanium forms a passive, self-healing titanium dioxide oxide layer when exposed to air or moisture. It is immune to saltwater, chlorines, and organic acids. Furthermore, titanium is 100% biocompatible and hypoallergenic—human bone readily integrates with titanium surfaces (osseointegration), making it the gold standard for surgical implants, joint replacements, and medical instruments.
• Tungsten Corrosion & Medical Safety: Tungsten exhibits fair corrosion resistance in ambient environments, but it oxidizes in moist air at elevated temperatures and dissolves in concentrated acids or strong alkalis. While non-toxic in solid form, tungsten is not considered biocompatible for permanent internal medical implants.

Dimension Conclusion: Titanium wins unequivocally for marine hardware, chemical processing equipment, medical implants, and hypoallergenic wearables. Tungsten is reserved for specialized radiation shielding or industrial wear parts where biocompatibility is not required.

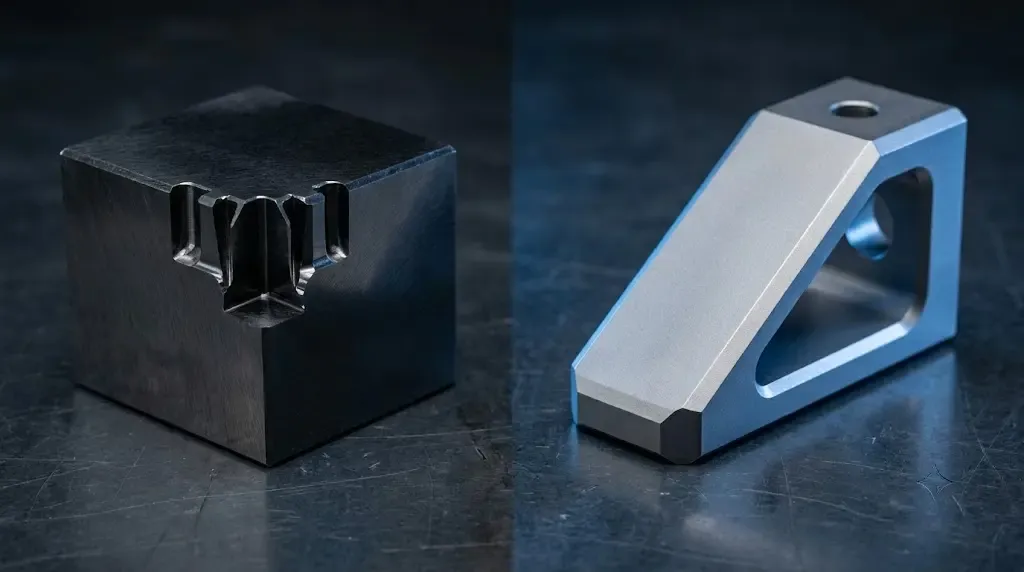

06. CNC Machinability, Wire EDM & Manufacturing Costs

Machining characteristics directly dictate unit pricing, production lead times, and tooling overhead.

• Machining Titanium: Titanium alloys work-harden rapidly and exhibit low thermal conductivity, causing extreme heat buildup on tool inserts. However, with rigid CNC setups, high-pressure coolant, and sharp carbide tooling, titanium can be reliably milled, turned, and drilled at production scale.
• Machining Tungsten: Pure tungsten and tungsten carbide are notoriously difficult to cut with conventional fluted end mills. Attempting to drill or mill dense tungsten with standard tools leads to immediate tool destruction or edge chipping. Manufacturing tungsten parts relies heavily on powder metallurgy (sintering), diamond wheel grinding, and Wire EDM (Electrical Discharge Machining).

Dimension Conclusion: Titanium is far easier and more cost-effective to machine into complex 3D geometries via multi-axis CNC milling. Tungsten parts incur significantly higher manufacturing costs due to slow material removal rates and specialized EDM or diamond-grinding processes.

Decision Blueprint: How to Choose for Your Next Project

Use this practical decision framework to finalize your material selection:

Choose Titanium if your project requires:

• High strength-to-weight ratio for aerospace, automotive, defense, or drone hardware.
• 100% biocompatibility for medical implants, surgical tools, or hypoallergenic jewelry.
• Total immunity to saltwater, marine environments, or chemical corrosion.
• High impact resistance, flexibility, and fatigue strength under dynamic loading.
• Complex 3D parts that must be machined efficiently via 5-axis CNC milling or Swiss turning.

Choose Tungsten if your project requires:

• Extreme mass density in a compact space (balancing weights, flywheels, kinetic penetrators).
• Unmatched hardness and scratch resistance for industrial wear inserts or abrasive nozzles.
• Refractory heat resistance capable of withstanding operating temperatures above 1,500°C–3,000°C.
• High-performance radiation shielding for medical imaging or nuclear equipment.
