6 Standards for Semiconductor CNC Machining: Materials, Tolerances & DFM Rules
In the semiconductor manufacturing ecosystem, a single microscopic burr, particulate contaminant, or outgassing trace can ruin an entire batch of sub-2nm wafers, costing chip fabs millions of dollars. As global semiconductor investments accelerate under modern supply chain initiatives, semiconductor equipment OEMs require an unprecedented tier of precision manufacturing.
Mastering semiconductor CNC machining demands far more than basic metal cutting. It requires sub-micron volumetric tolerances, non-contaminating toolpaths, specialized high-performance polymers, and rigorous cleanroom processing protocols.
This guide breaks down the 6 mission-critical precision standards, high-purity material matrices, and Design for Manufacturability (DFM) guidelines required to manufacture high-yield semiconductor components.
01. Frontend vs. Backend Semiconductor Component Breakdown
Semiconductor fabrication equipment is broadly split into Frontend (Wafer Fab / Lithography / Etching) and Backend (Packaging / Testing) processes. Each sector imposes vastly different structural and cleanliness requirements on machined components.
Component Category | Typical Machined Parts | Primary Environmental Strain | Critical Manufacturing Requirement |

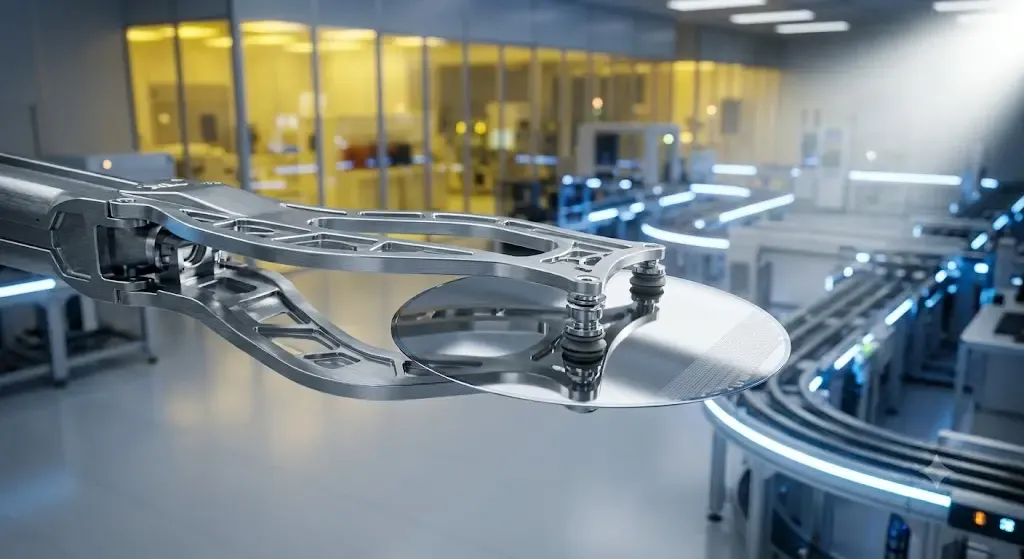

Wafer Handling & Transfer | End Effectors, Vacuum Chucks, Robot Arms | Continuous movement, frictional wear, zero particle allowance | Ultra-lightweighting, static dissipative properties, ±0.0002″ parallelism |
Plasma Etch & CVD Chambers | Showerheads, Gas Manifolds, Chamber Liners | Corrosive plasma gases, extreme heat | High chemical inertness, mirror surface finish, zero porosity |
Fluid & Gas Delivery Systems | High-Purity Valves, Fittings, Regulator Blocks | Ultra-High Vacuum (UHV), high-pressure corrosive liquid chemicals | VIM-VAR stainless steel, zero internal burrs, electropolished flow paths |
CMP & Wet Processing | CMP Retaining Rings, Chemical Cleaning Cassettes | Harsh slurry abrasives, strong acids | High wear resistance, zero metal-ion leaching (PEEK / Teflon usage) |
Backend Test & Assembly | IC Test Sockets, Stiffener Plates, Heat Sinks | Rapid thermal cycling, high-density pin contact matrix | Ultra-fine micro-drilling (hole diameters down to 0.1 mm), high thermal conductivity |
02. High-Purity Material Selection Matrix for Semiconductor Parts
Selecting the wrong material temper or plastic grade can lead to premature chemical degradation or severe outgassing under high-vacuum conditions.
The table below outlines the primary materials utilized in semiconductor CNC machining:
Material Grade | Chemical & Outgassing Resistance | Max Operating Temp | Machinability & Stability | Primary Semiconductor Application |

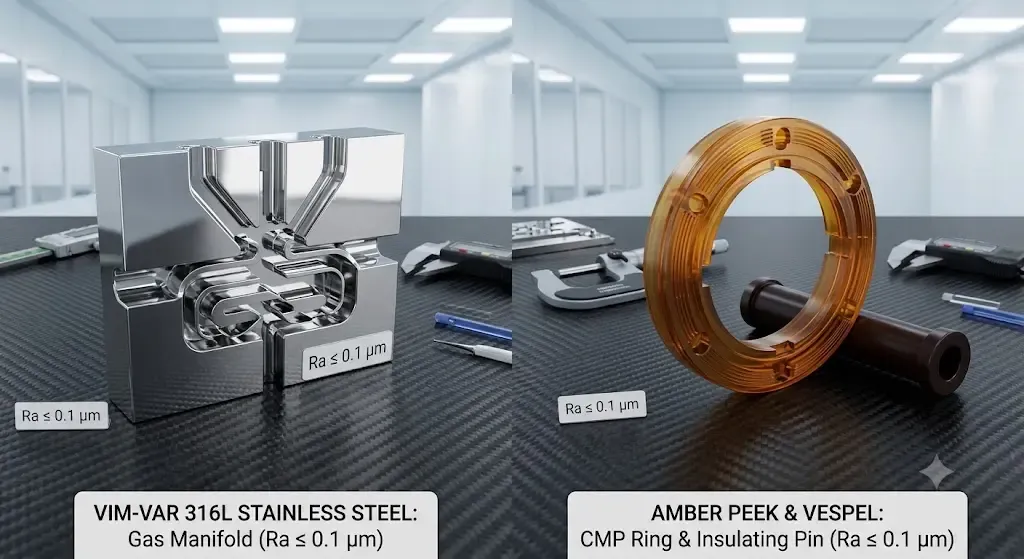

Aluminum 6061-T6 / 7075-T6 | Moderate; Requires Nickel or Anodized coating | 150°C | Outstanding (Fast cycle times) | Chamber bodies, structural frames, vacuum chuck bases. |
Stainless Steel 316L VIM-VAR | Exceptional against corrosive gases; Zero outgassing | 800°C | Difficult (Work hardens easily) | UHV gas delivery manifolds, ultra-pure valve bodies. |
PEEK (Unfilled / ESD Grade) | Excellent chemical resistance; Ultra-low outgassing | 260°C | Good (Requires sharp carbide tools) | CMP retaining rings, wafer end effectors, wet bench rollers. |
Ultem 1000 (PEI) | High dielectric strength; Low outgassing | 180°C | Good (Prone to internal stress cracking) | Test sockets, electrical insulators, sensor housings. |
Teflon (PTFE / PFA) | Immunity to almost all chemicals; Zero contamination | 260°C | Poor / Soft (Creeps under tool pressure) | Chemical delivery fittings, acid etching bath components. |
Vespel SP-1 (Polyimide) | Superior wear resistance; Extreme UHV compatibility | 300°C+ | Fair (Expensive raw material) | High-temperature wafer clamps, plasma chamber insulating pins. |
03. Achieving Sub-Micron Tolerances & Mirror Surface Finishes
While standard machine shops operate within ±0.002″, advanced semiconductor CNC machining frequently demands tolerances down to ±0.0001″ (±0.0025 mm).
Overcoming Thin-Wall Deflection
Semiconductor wafer end-effectors and showerheads often feature wall thicknesses below 0.5 mm across large surface areas.
- The Solution: Machinists must utilize custom vacuum fixtures, high-speed micro-milling spindles (30,000+ RPM), and light depths of cut (DOC) to eliminate mechanical pressure and preventing part flexing.
Eliminating Outgassing Traces
Rough machined surfaces trap microscopic oils, moisture, and cleaning agents within surface micro-valleys. Under Ultra-High Vacuum (UHV), these trapped particles outgas, contaminating the wafer fab line.
- The Solution: Subsequent processing—such as diamond face milling, electropolishing, or magnetorheological finishing (MRF)—seals the micro-profile to achieve mirror finishes that prevent particle accumulation.
04. Multi-Axis CNC & Wire EDM Process Synergies
Producing complex gas routing channels, deep internal vacuum pockets, and burr-free micro-holes requires combining complementary subtractive techniques.
Use high-speed 5-axis CNC mills to sculpt complex 3D organic contours and mounting interfaces in a single setup, guaranteeing absolute geometric concentricity. Then, transfer the part to a high-precision Wire EDM (Electrical Discharge Machining) center to cut zero-stress internal vacuum channels or micro-slots. Because EDM exerts zero mechanical force, it eliminates tool deflection on ultra-thin walls while leaving a completely burr-free edge.
Integrating multi-axis milling with electrical discharge processes also solves the critical challenge of internal micro-burr generation within complex fluidic channels. In traditional deep-hole drilling or internal pocketing, mechanical tools inevitably roll metal edges, creating microscopic burrs that are impossible to inspect or deburr manually. If these micro-burrs dislodge during semiconductor equipment operation, they can travel through high-purity gas lines and contaminate the wafer chamber. By utilizing Wire EDM or Sinker EDM for internal features, material is eroded spark-by-spark without physical shear stress, leaving pristine, burr-free internal radii and consistent flow channels required for ultra-high vacuum (UHV) gas distribution systems.
05. Real-World Case Study: Ultra-Thin Wafer Handling End-Effector
A leading semiconductor equipment manufacturer required a custom, high-rigidity end effector designed to transfer 300 mm silicon wafers within a high-speed vacuum handling robot.
The Engineering Challenges:
- Ultra-Thin Wall Profiles: Structural ribs milled down to 0.5 mm wall thickness across a 350 mm span.
- Extreme Geometric Flatness: Surface mounting faces required absolute flatness within ±0.0002″ (5 microns) to prevent wafer slippage during rapid indexing.
- Masked Hard Black Anodizing: Precision threaded grounding holes required zero finish buildup to maintain electrical conductivity, while external surfaces needed non-reflective, scratch-resistant hard anodizing.
The Execution Strategies:
- Stress-Relief Machining Sequences: Raw 7075-T6 billets underwent rough machining followed by thermal stress-relief baking before final finishing passes to eliminate internal material tension.
- Custom Vacuum Fixturing: Special vacuum chucks supported the thin-wall structures during 5-axis high-speed finishing runs.
- Precision Masking & CMM Verification: Threads were custom-masked prior to hard anodizing, followed by 100% CMM inspection in a temperature-controlled metrology lab.
06. Cleanroom Processing, Outgassing & Quality Compliance
A perfectly machined part is useless if it arrives at a semiconductor fab contaminated with cutting fluid residue or skin oils.
- Class 100 / 1000 Cleanroom Packaging: Post-machining, parts undergo multi-stage ultrasonic cleaning using deionized (DI) water and aqueous degreasers, followed by vacuum oven baking to eliminate volatile hydrocarbons (outgassing verification). Parts are sealed in double-layer anti-static bags under nitrogen purge.
- ITAR & ISO 13485 / ISO 9001 Certifications: To support defense-related microelectronics and dual-use semiconductor technologies, machine shops must maintain strict ITAR data security and material lot traceability from mill to fab delivery.
Compliance with Ultra-High Vacuum (UHV) standards extends far beyond basic surface cleanliness—it demands rigorous verification of residual outgassing rates. Under vacuum pressures approaching 10-9 Torr, any entrapped cutting fluids, organic cleaning agents, or residual surface hydrocarbons will evaporate and condense onto nearby optics, wafer surfaces, or electrostatic chucks. Advanced semiconductor manufacturing facilities enforce strict outgassing testing protocols, such as ASTM E595, to verify Total Mass Loss (TML) and Collected Volatile Condensable Material (CVCM). Achieving these stringent benchmarks requires specialized post-machining passivation chemical baths, high-temperature vacuum bake-out cycles, and helium leak testing to ensure zero structural micro-porosity before final cleanroom double-bagging.
