Engineering Stress vs True Stress: The Material Mechanics Comparison Guide

When evaluating material strength for product design, metal forming, or computer-aided engineering, understanding the exact force-to-area relationship is critical. The debate between engineering stress vs. true stress (and their corresponding strain metrics) comes down to a single fundamental question: Do you assume the material's cross-sectional area remains constant during deformation, or do you track its real-time dimensional changes?

Choosing the wrong stress metric can lead to catastrophic errors in structural simulation or inaccurate manufacturing calculations.

At-a-Glance Comparison: Engineering Stress vs. True Stress

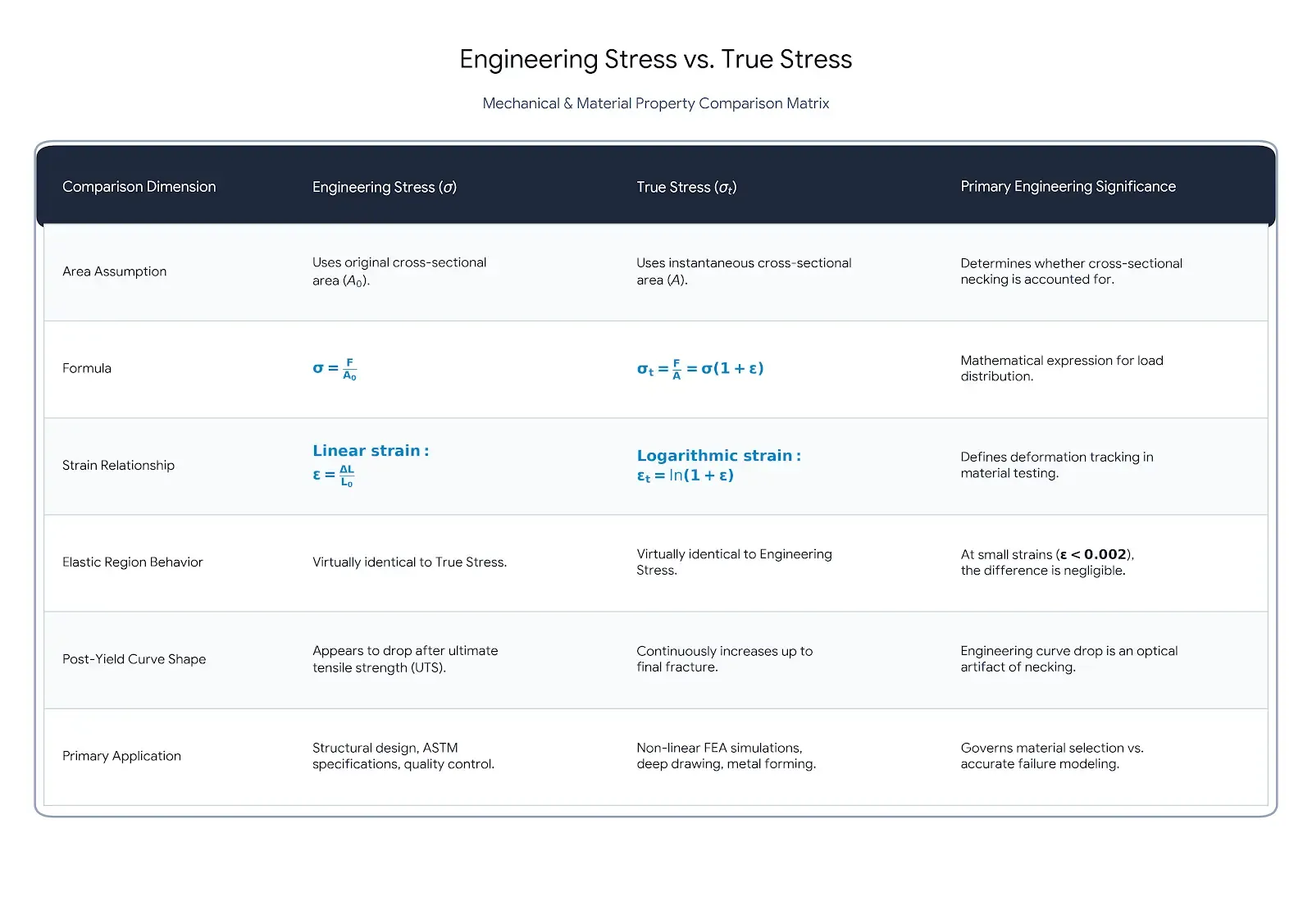

For a rapid engineering reference, here is how engineering stress and true stress stack up across critical mechanical baselines:

01. Mathematical Formulas & Derivation Equations

To analyze how force is distributed across a test specimen, mechanics of materials defines two distinct mathematical formulations:

Engineering Stress & Strain Formulas

True Stress & Strain Formulas

Conversion Between Engineering and True Values

From a practical materials testing and finite element modeling perspective, these simple conversion relationships remain valid only up to the exact point where localized necking begins. The fundamental mathematical conversion assumes that plastic deformation stretches uniformly across the entire active gauge length while volume remains constant. Once a metallic specimen passes its ultimate tensile strength and localized necking initiates, severe deformation concentrates within a very narrow region while the surrounding material unloads elastically. Beyond this critical threshold, relying on simple mathematical conversions will introduce significant error, forcing testing laboratories to utilize direct optical or laser measurement systems that track real-time cross-sectional area shrinkage directly at the neck.

02. Cross-Sectional Area Dynamics & The Necking Phenomenon

The core operational difference between these two metrics appears when a ductile material transitions from uniform plastic deformation to localized necking.

• Engineering Stress Perspective: Because the formula forces A₀ to remain constant, the rapid drop in cross-sectional area at the necking zone causes the measured force (F) to decrease. This creates the illusion on an engineering stress-strain curve that the material is becoming "weaker" after reaching its Ultimate Tensile Strength (UTS).
• True Stress Perspective: True stress divides the load by the actual localized neck area (A_neck). Even though force decreases during necking, the cross-sectional area shrinks even faster. Consequently, the true stress curve shows that the material continuously strain-hardens until total fracture occurs.

Key Conclusion: The apparent drop in strength on standard engineering curves is a mathematical artifact of using a fixed area (A₀). In reality, the material's internal resistance to load continues to increase.

In real-world physical testing, observing this localized necking behavior highlights why instantaneous geometric tracking is so vital for heavy hardware manufacturing. When a component experiences a sudden reduction in local thickness, the actual stress concentrated at that specific cross section skyrockets long before the part physically breaks apart. For manufacturing engineers designing intensive operations like deep drawing, stamping, or cold forging, failing to account for this localized thinning means tooling forces and material tearing thresholds will be completely miscalculated. This often leads to unexpected die damage, severe springback errors, or hidden micro fractures in finished production components.

03. Stress-Strain Curve Behavior: Elastic vs. Plastic Regions

Understanding how these curves diverge across different deformation regimes is vital for material selection.

Elastic Region

In the linear elastic region, deformations are extremely small. The change in cross-sectional area is so minute that engineering stress and true stress are practically identical. Standard Hooke's Law applies equally to both metrics.

Plastic Region & Strain Hardening

Once the material yields, plastic deformation causes noticeable dimensional changes. The two curves begin to diverge:

1. i. Up to UTS: True stress rises at a steeper slope than engineering stress.

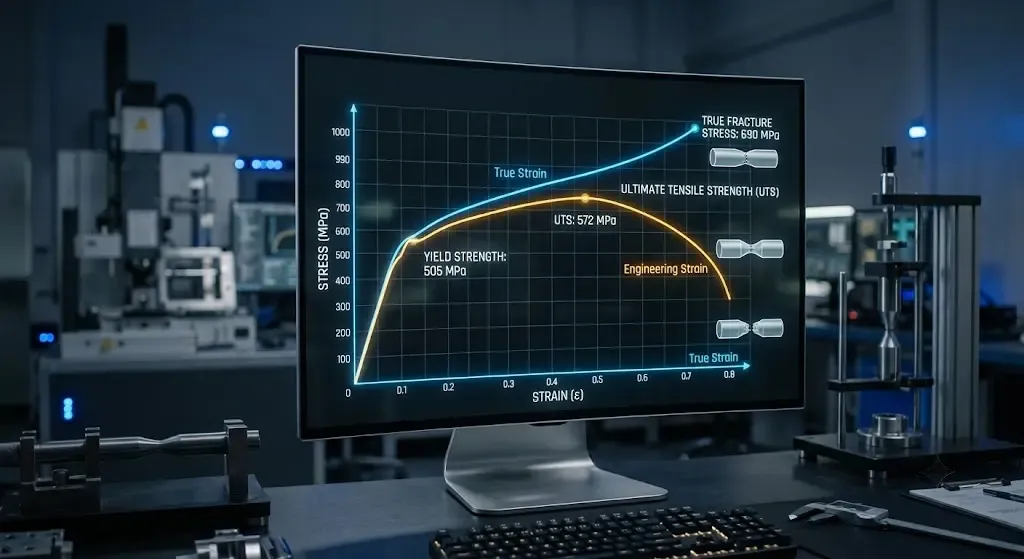

2. ii. Post-UTS (Necking to Fracture): The engineering curve slopes downward toward the breaking point, while the true stress curve climbs monotonically upward until rupture.

Key Conclusion: For small elastic deformations, engineering values are perfectly sufficient. For large plastic deformations, true stress is mathematically mandatory.

This divergence across deformation regimes fundamentally changes how structural durability is evaluated during early product development. While keeping mechanical designs strictly within the elastic limit guarantees that parts return to their original dimensions, modern lightweight engineering often requires structural components to absorb extreme shock or impact forces through controlled plastic bending. Understanding the true post yield trajectory allows design teams to predict the exact work hardening response and energy absorption capacity of the metal. This ensures that critical safety components absorb kinetic energy predictable and deform gracefully during overload events, rather than suffering sudden brittle rupture.

04. Practical Applications: FEA Simulation vs. Standard Tensile Testing

Both metrics play critical, non-overlapping roles in modern mechanical engineering and manufacturing.

When to Use Engineering Stress

• Component Structural Design: Most mechanical structures (machined brackets, frames, pressure vessel shells) are designed to operate strictly within the elastic limit. Because deformations are minimal, ASTM standard engineering stress-strain data is used for safe working stress calculations.
• Material Property Datasheets: Standard yield strength (R_p0.2), ultimate tensile strength (R_m), and elongation at break reported by material suppliers are derived directly from engineering stress curves.

When to Use True Stress

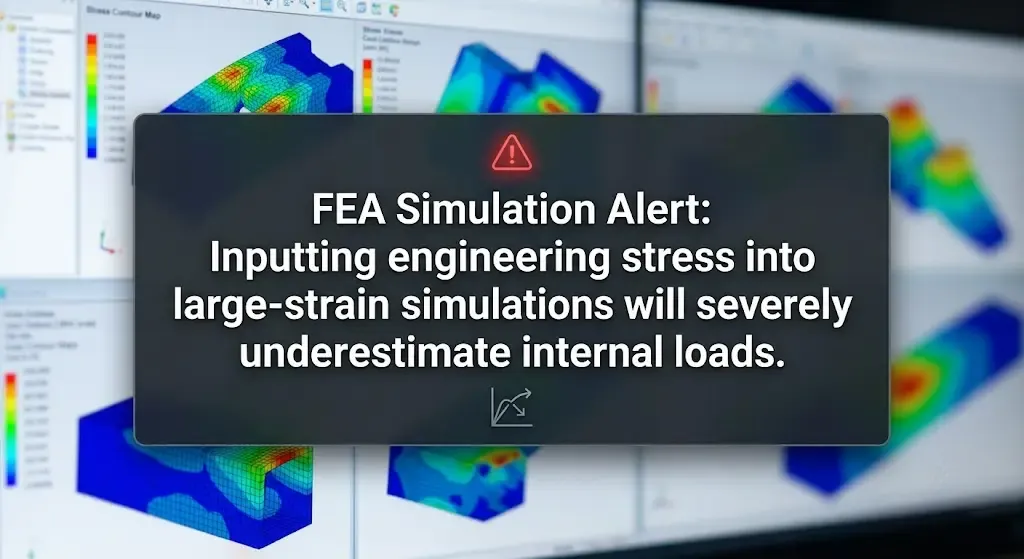

• Non-Linear Finite Element Analysis (FEA): Advanced implicit/explicit solvers (such as LS-DYNA, Abaqus, or ANSYS) require true stress vs. effective plastic strain curves. Inputting engineering stress into a large-deformation simulation will severely underestimate internal stresses, leading to incorrect springback or failure predictions.
• Metal Forming & Manufacturing Processes: Processes involving severe plastic deformation—such as deep drawing, cold heading, stamping, and heavy CNC cutting forces—rely on true stress calculations to determine required press tonnages and tool wear limits.

Key Conclusion: Use Engineering Stress for everyday elastic structural design and supplier quality control; use True Stress for non-linear FEA simulations, crash testing, and plastic metal forming analysis.

In modern high-precision CNC machining and advanced manufacturing, applying true stress principles extends far beyond sheet metal stamping or structural crash simulations. When cutting tough aerospace alloys like titanium grade five or nickel based superalloys, the metal undergoing shear at the tool edge experiences extreme localized plastic deformation at ultra high speeds. Tooling engineers and CAM specialists use true stress material models to accurately simulate cutting forces, localized thermal buildup at the tool chip interface, and chip separation mechanics. Accounting for these true deformation forces allows machine shops to optimize toolpaths, select superior cutting tool coatings, prevent chatter vibrations, and guarantee pristine surface finishes on high tolerance hardware.

Decision Blueprint: Which Metric Should You Use?

To summarize your material mechanics workflow:

• Select Engineering Stress if: You are specifying materials based on standardized supplier data sheets, designing structural parts that must never yield, or performing linear static FEA within elastic safety factors.
• Select True Stress if: You are running non-linear crash/impact simulations, modeling sheet metal stamping/forming processes, or analyzing post-yield fracture mechanics under large plastic strain.

Bridging the gap between engineering stress and true stress requires seamless coordination across multi-disciplinary engineering teams. While procurement specialists and quality control inspectors rely on engineering stress datasheets (such as yield strength and ultimate tensile strength) to verify material lot certifications against ASTM standards, CAE analysts and manufacturing engineers must systematically convert these raw test curves into true stress-strain inputs before running non-linear structural or machining simulations. Establishing a standardized material transformation workflow within your engineering organization prevents costly discrepancies where a part appears structurally safe under linear elastic assumptions but fails prematurely under real-world plastic overload or high-velocity forming conditions.
