Chrome vs Stainless Steel: 2026 Material & Finish Comparison Guide
When specifying metallic equipment for healthcare facilities, food processing plants, commercial kitchens, or custom enclosures, deciding between chrome vs stainless steel is a critical engineering crossroads. While they can look visually similar at a glance, they represent two fundamentally different metallurgical concepts: chrome is an electroplated surface coating applied over a base metal, whereas stainless steel is a solid, self-healing alloy containing chromium throughout its entire cross-section.
Choosing between a superficial plated layer and a solid corrosion-resistant alloy directly impacts your hardware's lifespan, sanitation protocols, scratch resistance, and total cost of ownership.
At Aether, we precision-machine, fabricate, and finish thousands of metallic components daily. This comprehensive guide breaks down the real-world differences across key engineering dimensions to help you select the ideal material for your next application.
At-a-Glance Comparison: Chrome Plating vs. Stainless Steel
For a quick reference before diving into the detailed breakdown, the table below compares standard chrome plating over steel against 304 and 316 grades of solid stainless steel:
Dimension | Chrome Plating (Over Carbon Steel) | 304 Stainless Steel | 316 Marine-Grade Stainless Steel | Primary Engineering Impact |
Material Structure | Thin electroplated chromium coating (0.2–30 µm) over a base substrate. | Solid homogeneous alloy (18% Cr, 8% Ni) all the way through. | Solid alloy with Molybdenum (16% Cr, 10% Ni, 2% Mo). | Dictates material behavior if scratched, chipped, or dented. |
Corrosion Resistance | Moderate (Relies entirely on an intact, unchipped plated barrier). | High (Resists moisture, steam, and mild atmospheric oxidation). | Exceptional (Resists chlorides, saline, and aggressive acids). | Determines long-term suitability for marine, medical, and washdown environments. |
Damage & Scratch Impact | Poor (Scratches expose raw steel underneath, triggering rust). | Self-Healing (Passive chromium oxide layer regenerates in air). | Self-Healing (Rapid passivation even under chemical exposure). | Critical for high-traffic, heavy-use, or sterile clinical touchpoints. |
Sanitation & Hygiene | Fair (Chipped plating traps moisture and harbors bacteria). | Outstanding (Non-porous, smooth surface supports deep sterilization). | Superior (Immune to pitting from harsh bleach/saline washdowns). | Governs compliance with FDA, USDA, and healthcare infection control. |
Visual Appearance | Ultra-bright, mirror-like specular shine (> 90 GU). | Available in satin brushed (#4), matte, or polished mirror finishes. | Available in satin brushed (#4), matte, or polished mirror finishes. | Dictates light reflection, glare control, and smudge concealment. |
Thermal Limit | Limited by plating adhesion and thermal expansion mismatch. | Maintains mechanical strength up to 800°C. | Maintains high creep strength under extreme thermal shock. | Governs suitability for autoclaves, ovens, and industrial heat. |
Relative Cost | Low to Moderate (Low upfront material cost). | Moderate (Cost-effective solid alloy option). | High (Premium choice for extreme chemical exposure). | Dictates initial procurement budget versus long-term replacement cycles. |
01. Material Structure & Chemical Composition
The most fundamental distinction between chrome and stainless steel lies in how the protective chromium is integrated into the component.
- Chrome Plating Mechanics: Chrome is not a solid block of metal. It is produced by electroplating a microscopic layer of chromium onto a base metal (typically carbon steel, brass, or aluminum). Decorative chrome uses an ultra-thin layer (0.2–0.5 µm), while industrial "hard chrome" applies a thicker coating (10–30 µm) to increase surface hardness.
- Stainless Steel Mechanics: Stainless steel is an alloy made by melting iron together with at least 10.5% chromium, alongside nickel, manganese, and molybdenum. The chromium is not a layer—it is chemically bonded throughout the metal.
- The Verdict: Stainless steel offers structural continuity. If stainless steel is machined, cut, or deeply gouged, the newly exposed metal retains the exact same chemical composition and protective properties as the original surface. Chrome plating relies entirely on an unbroken exterior shell.
02. Durability, Scratch Resistance & Self-Healing Capabilities
Physical wear from daily handling, rolling carts, or tool contact reveals a massive gap in material longevity.

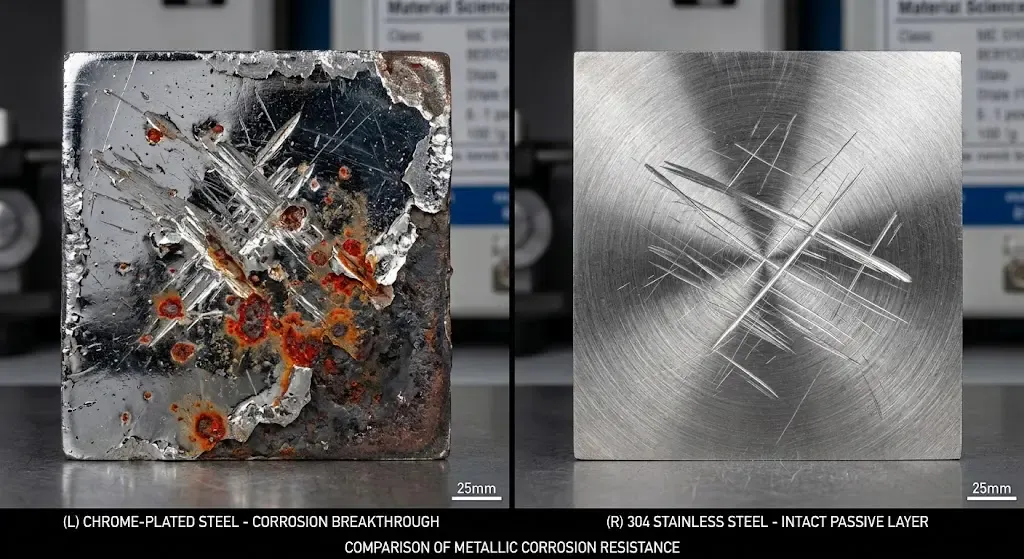

- Chrome Plating Vulnerability: Because chrome is merely a surface treatment, any severe impact or deep scratch penetrates the plated layer, exposing the vulnerable carbon steel underneath. Once moisture reaches this exposed base metal, rust forms under the plating, causing the chrome to flake, bubble, and peel away in sharp sheets.
- Stainless Steel Self-Healing (Passivation): When stainless steel is exposed to oxygen, the chromium within the alloy instantly reacts to form a microscopic, invisible chromium oxide passive film. If the surface is scratched or dented, this passive film automatically regenerates over the newly exposed metal within seconds.
- The Verdict: Stainless steel wins overwhelmingly for long-term durability. Chrome plating works well in low-impact, dry environments, but solid stainless steel survives heavy mechanical abuse without structural degradation.
03. Corrosion Resistance & Infection Control Protocols
In sterile processing departments, operating rooms, food processing lines, and marine environments, corrosion resistance is directly tied to safety and hygiene.
- Infection Control & Chrome: When chrome plating chips or blisters due to repeated contact, the resulting micro-crevices trap moisture, organic matter, and aggressive cleaning chemicals. These jagged flaking edges become breeding grounds for bacteria that cannot be sanitized, posing a serious infection control hazard in medical facilities.
- 304 vs. 316 Stainless Steel Performance:
- Grade 304 Stainless Steel: Known as "surgical stainless steel," it contains roughly 18% chromium and 8% nickel. It easily withstands standard water exposure, steam sterilization, and common neutral detergents.
- Grade 316 Stainless Steel: Contains an added 2% Molybdenum, which dramatically improves resistance to chlorides, saline solutions, sodium hypochlorite (bleach), and aggressive industrial acids.
- The Verdict: 304 and 316 Stainless Steel are mandatory for sterile, high-washdown environments. They withstand repeated exposure to autoclaves, gamma radiation, and harsh chemical disinfectants without pitting or flaking.
04. Aesthetics, Sheen & Light Reflectivity
Visual appeal and light reflection dictate how equipment interacts with ambient room lighting and user touch.

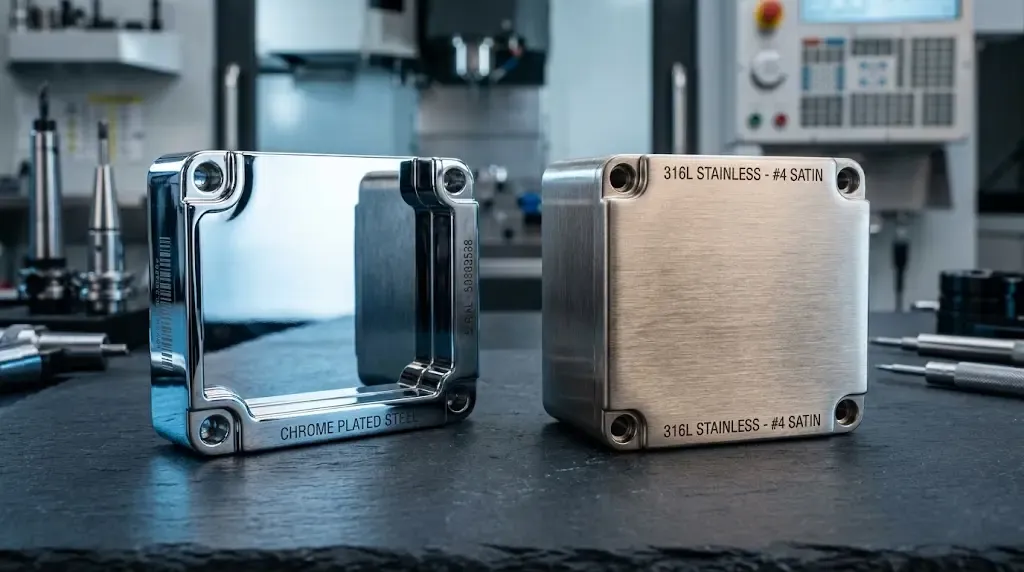

- Chrome Appearance: Delivers an intense, highly reflective mirror sheen with a slightly cool, blue-tinted undertone. However, high-gloss chrome highlights every single fingerprint, smudge, dust particle, and water spot, requiring frequent wiping with soft microfiber cloths.
- Stainless Steel Appearance: While stainless steel can be polished to a mirror shine, it is most commonly supplied in a #4 Satin Brushed Finish. This directional linear texture diffuses overhead lighting, softens glare, and conceals fingerprints and minor daily handling scuffs.
- The Verdict: Choose chrome for high-glamour, decorative accents where a brilliant mirror reflection is desired. Choose brushed stainless steel for high-traffic functional equipment where minimizing glare and hiding smudges is essential.
05. Maintenance, Total Lifecycle Cost & Environmental Impact
When evaluating hardware budgets, procurement teams must weigh upfront purchase prices against total operating costs over time.
- Initial vs. Lifecycle Cost: Chrome-plated equipment is generally 20% to 40% cheaper upfront than solid stainless steel. However, in demanding commercial or clinical settings, chrome plating often requires replacement within a few years due to rust or peeling. Stainless steel equipment typically remains in service for decades without structural failure.
- Recyclability: Solid stainless steel is 100% recyclable. Old equipment can be melted down directly to produce new high-grade alloys. Chrome-plated steel requires chemical stripping to remove heavy metal plating before the base steel can be remelted, complicating recycling streams.
- The Verdict: Chrome provides short-term budget savings for light-duty use. Stainless steel delivers vastly superior long-term return on investment (ROI) for professional, industrial, and clinical infrastructure.
Quick Identification: How to Tell Chrome from Stainless Steel
If you are inspecting existing shop equipment and need to quickly verify the material, use these three practical tests:

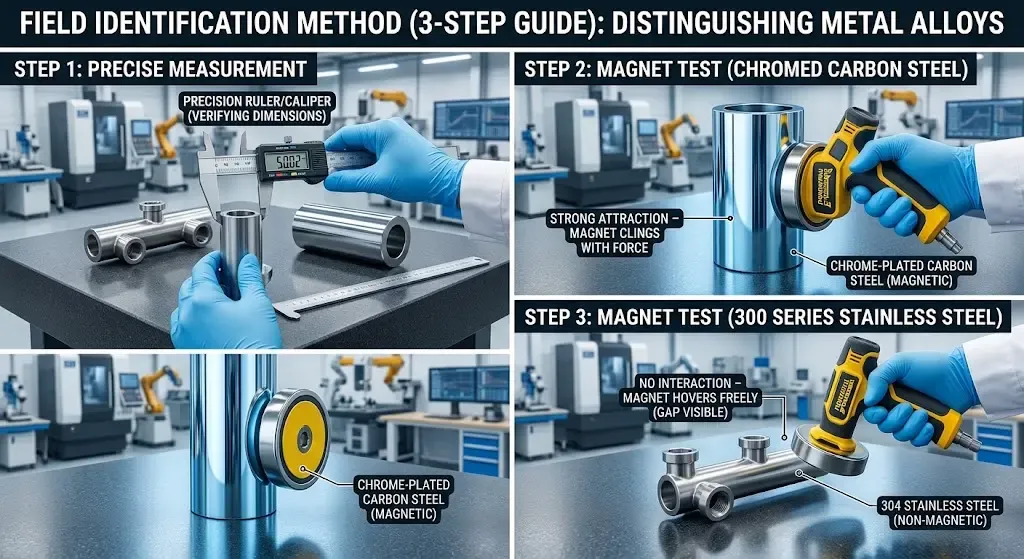

- The Magnet Test: Standard 300-series stainless steel (such as 304 or 316) is austenitic and typically non-magnetic or very weakly magnetic. Chrome-plated carbon steel is strongly magnetic.
- The Sheen & Color Tint: Chrome reflects images like a crisp glass mirror with a subtle cold blue cast. Stainless steel usually exhibits a slightly warmer, silvery-gray tone and is frequently finished with a linear satin brush.
- Inspection of Edges and Joints: Look closely at welded seams, fastener holes, or underside edges. Chrome plating often shows tiny plating lines, uneven coating build-up, or faint reddish rust spots near damaged edges.
Decision Blueprint: Which Option Fits Your Project?
To finalize your material specifications, follow this quick selection blueprint:
- Specify Chrome-Plated Steel if: You are fabricating budget-constrained equipment for dry, low-use environments (such as basic storage racks, display fixtures, or residential trim) where the component will not be subjected to harsh chemical washdowns or heavy physical impacts.
- Specify Grade 304 Stainless Steel if: You are manufacturing general medical hardware (IV poles, mayo stands), commercial kitchen fixtures, food contact surfaces, or architectural panels requiring long-term durability and steam cleanability.
- Specify Grade 316 Stainless Steel if: You are designing components for operating rooms, sterile processing departments, subsea marine hardware, or pharmaceutical processing lines exposed to heavy chlorides, saline, and aggressive chemical disinfectants.
