5052 Aluminum vs 6061 Aluminum: The 2026 Material Comparison Guide

Selecting the right alloy can make or break your project's performance, manufacturing budget, and delivery timelines. In precision manufacturing, 5052 aluminum vs 6061 remains one of the most frequent debates engineers and product designers face. While both materials are highly versatile and widely deployed across global industries, they belong to completely different alloy series. Consequently, they behave entirely differently under a CNC cutting tool, inside a press brake, or when exposed to harsh environments.

If you are sourcing raw materials for structural frames, marine hardware, high-stress automotive components, or intricate electronic enclosures, choosing blindly is a costly risk. This comprehensive guide provides a direct, data-backed technical breakdown to help you isolate the exact mechanical trade-offs and select the ideal grade for your application.

At-a-Glance Comparison: 5052 vs 6061 Aluminum

For a fast engineering reference, the table below maps out how these two dominant aluminum alloys stack up across critical material compositions, thermal specifications, and mechanical baselines:

01. Mechanical Strength: 6061 Takes the Lead

The foundational difference between these two metals lies in their distinct internal crystalline structures and how they achieve their structural integrity.

6061 aluminum is a precipitation-hardened, heat-treatable alloy. When processed to the ubiquitous T6 temper, it undergoes a meticulous solution heat-treatment followed by artificial aging. This causes magnesium-silicide precipitates to distribute uniformly within the aluminum matrix, locking dislocations in place and dramatically increasing hardness.

Conversely, 5052 aluminum is non-heat-treatable. It relies entirely on solid-solution strengthening from its magnesium content, supplemented by strain hardening (cold working, such as the H32 temper). Because strain hardening only increases dislocation density mechanically rather than micro-structurally transforming the phase matrix, its ultimate strength threshold is lower.

• The Data: 6061-T6 boasts an ultimate tensile strength of 310 MPa and a yield strength of 276 MPa, completely eclipsing 5052-H32’s metrics of 228 MPa and 193 MPa, respectively. Under pure structural loads, 6061 can withstand roughly 35% more stress before deforming permanently.
• The Exception: 5052 aluminum yields superior fatigue strength (117 MPa vs 6061's 96.5 MPa). This means that under millions of low-amplitude stress cycles—such as constant vehicular vibration or aerodynamic buffeting—5052 is remarkably resilient against micro-cracking and sudden structural failure where 6061 might prematurely fatigue.

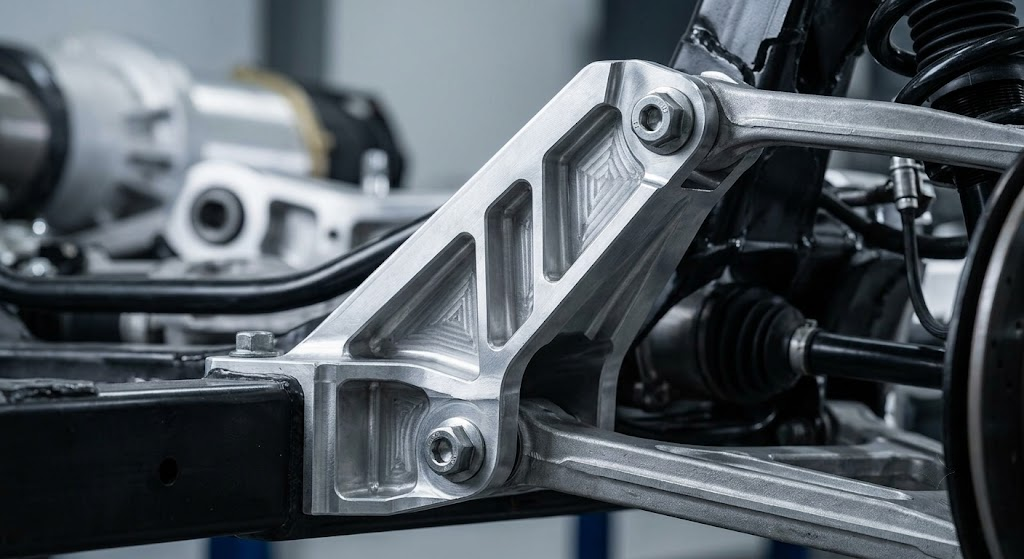

• The Verdict: For structural frameworks, load-bearing brackets, heavy-duty automation rigs, and high-stress aerospace components, 6061 aluminum is the undisputed winner.

02. Machinability & Fabrication: The CNC Sweet Spot

Machinability dictates how cleanly a metal shears away when met with a high-speed carbide milling cutter or turning insert. If an alloy is too soft or elastic, it will weld itself to the cutting tool flutes, leading to built-up edge, snapped tooling, and ruined surface finishes.

• 6061 Machining Behavior: 6061-T6 cuts exceptionally well. Thanks to its structural hardness and magnesium-silicon composition, the material is brittle enough to form crisp, tightly curled metal chips that eject rapidly from the cutting zone. This allows CNC programmers to execute high-feed milling, deep pocketing, and high-speed drilling while maintaining ultra-tight geometric tolerances and mirror-like surface roughness profiles.
• 5052 Machining Behavior: 5052 is notoriously "gummy" and elastic during CNC milling operations. Instead of shearing away cleanly under the tool edge, it tends to tear and smear. This creates continuous, stringy nest-like chips that wrap around spinning spindles, clog coolant lines, and leave heavy, razor-sharp burrs along the part edges. Machining 5052 requires highly specialized feeds, speeds, and aggressive rake angles to avoid massive part deformation.
• The Verdict: 6061 is highly preferred for CNC machining. If your part features complex 3D surfacing, close-tolerance tapped holes, deep counterbores, or intricate internal channels, specifying 6061 will save massive amounts of machine cycle time and labor costs.

How We Overcome This: At Aether, we recognize that certain applications force you to use 5052 for its specialized chemical properties. To mitigate its poor machinability, we utilize proprietary, mirror-polished-flute carbide tooling paired with targeted high-pressure through-spindle coolant delivery. Where mechanical cutting tools risk warping ultra-thin geometries, we deploy advanced Wire and Sinker EDM capabilities to cleanly erode micro-features using zero-force spark erosion, eliminating the part distortion common in standard machine shops.

03. Formability and Weldability: 5052 Asserts Dominance

If your manufacturing routing involves sheet metal stamping, complex press-brake bending, rolling, or extensive structural welding, the material's ductility and elongation characteristics become your primary production bottlenecks.

• 5052 Behavior: Thanks to its lower yield strength and superior elongation properties, 5052 handles severe bending and cold forming beautifully. It has excellent plasticity, allowing sheet metal operators to bend it at extremely tight internal radii without the material thining out, texturing like an orange peel, or fracturing along the bend line. Additionally, 5052 offers exceptional weldability. It can be joined continuously via TIG or MIG welding using 5356 or 4043 filler rods with a remarkably low risk of hot-cracking.
• 6061 Behavior: Because 6061-T6 is highly hardened and aged, forcing it into tight radii on a press brake will frequently cause the outer bend radius to crack, craze, or snap entirely. To bend 6061 safely, operators must use much larger bend radii (3t to 5t thickness rules) or purchase the metal in an annealed (6061-O) state, form it, and then put it through an expensive, multi-stage post-fabrication heat treatment to restore its strength. Furthermore, while 6061 is highly weldable, the intense localized heat from a welding torch acts as an uncontrolled annealing cycle. This permanently degrades the T6 temper, causing the heat-affected zone (HAZ) surrounding the weld to lose up to 40% of its structural strength unless the entire assembly is re-heat-treated.
• The Verdict: 5052 is the king of sheet metal fabrication and structural forming. For fuel tanks, bent chassis plates, deep-drawn chalices, and complex welded enclosures, it heavily outclasses 6061.

04. Corrosion Resistance: Marine vs. General Environments

While all aluminum forms a natural protective oxide layer, the specific chemical alloying ingredients alter how the metal reacts to prolonged environmental exposure.

• 5052 Chemistry: The standout chemical trait of 5052 is that it contains virtually zero added copper (max 0.02%). Copper is the primary culprit behind galvanic pitting corrosion in aluminum alloys. Because it is copper-free and rich in magnesium, 5052 is exceptionally immune to alkaline chemical solutions, harsh industrial atmospheres, and marine environments saturated with highly corrosive saltwater spray and chloride ions.
• 6061 Chemistry: 6061 intentionally integrates trace amounts of copper (0.15% to 0.40%) within its matrix to help unlock its high heat-treated structural strength. While 6061 holds up wonderfully against freshwater, atmospheric moisture, and standard automotive fluids, those tiny copper micro-inclusions create localized galvanic cells when submerged in brine. Over time, saltwater will cause rapid pitting corrosion along the grain boundaries of 6061 much faster than 5052.

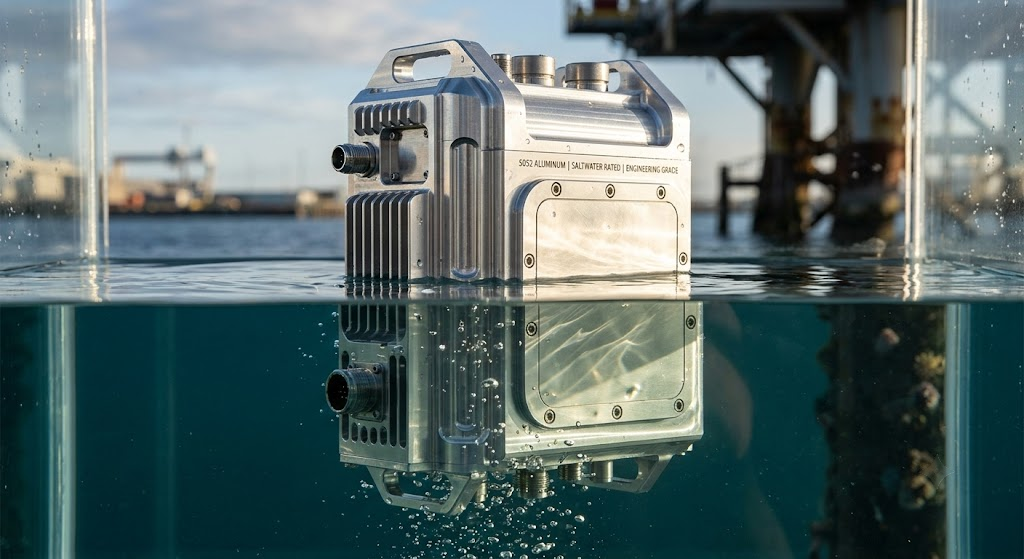

• The Verdict: For offshore marine equipment, subsea housings, and chemical processing components, 5052 aluminum is mandatory. For general industrial applications, 6061 is perfectly adequate.

05. Summary: Which Alloy Should You Select?

To lock in your final engineering material decision, use this quick, application-targeted blueprint:

Choose 5052 Aluminum if:

1. 1. Sheet Metal Dominant: Your project relies primarily on press-brake bending, stamping, rolling, or deep drawing.
2. 2. Heavy Welding Required: You are fabricating liquid-tight assemblies, such as fuel tanks, hydraulic reservoirs, or custom welded plumbing.
3. 3. Marine or Coastal Exposure: The component will live on a commercial marine vessel, an offshore oil rig, or inside a coastal facility exposed to constant salt air.
4. 4. High Cyclic Vibration: The part acts as a non-structural panel or shield subjected to continuous cyclic fatigue and harmonic shaking.

Choose 6061 Aluminum if:

1. 1. Intricate CNC Machining: Your part requires extensive high-speed milling, turning, precise pocketing, or threaded holes.
2. 2. Load-Bearing Structures: You are building rigid structural frameworks, structural brackets, aircraft fittings, or automotive suspension components that must carry significant mechanical loads.
3. 3. High Thermal Dissipation: The application demands rapid heat transfer, such as advanced electronic heat sinks, LED cooling blocks, or EV battery cooling plates.
4. 4. Strict Dimensional Stability: You need high hardness to resist physical wear, abrasion, and deflection under high bolt-torque clamping forces.
